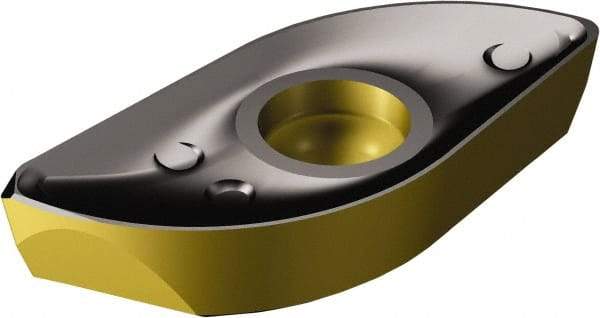

Sandvik Coromant - R21620T3 M-M Grade 4240 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 5/32" Thick, 19.99mm Corner Radius
Item #: 52065968
Brand: Sandvik Coromant
Model #: 5743619
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R216 |
| Insert Size | 20T3 |
| Material | Carbide |
| Manufacturer's Grade | 4240 |
| Coating | TiCN/Al2O3/TiN |
| Length (mm) | 17.90 |
| Length (Decimal Inch) | 0.7047 |
| Thickness (mm) | 3.97 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.7870 |
| Corner Radius (mm) | 19.99 |
| Hole Diameter (mm) | 4.00 |
| Hole Diameter (Decimal Inch) | 0.1575 |
| Coating Process | MTCVD |
| Shape | Round |
| Insert Hand | Right Hand |
| Chipbreaker | M-M |
| Maximum Depth of Cut (Decimal Inch) | 0.7047 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | R216-20 T3 M-M 4240 |
