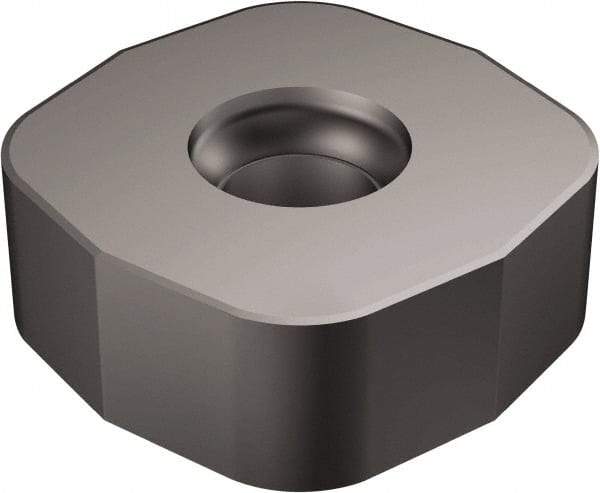

Sandvik Coromant - N365150536 Grade 6190 Ceramic Milling Insert - Uncoated, 5.66mm Thick, 15mm Inscribed Circle, 3.6mm Corner Radius
Item #: 52065935
Brand: Sandvik Coromant
Model #: 5782734
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | N365 |
| Insert Size | 150536 |
| Material | Ceramic |
| Manufacturer's Grade | 6190 |
| Coating | Uncoated |
| Length (mm) | 6.40 |
| Inscribed Circle (mm) | 15.00 |
| Inscribed Circle (Decimal Inch) | 0.5906 |
| Thickness (mm) | 5.66 |
| Thickness (Decimal Inch) | 0.2228 |
| Corner Radius (Decimal Inch) | 0.1417 |
| Corner Radius (mm) | 3.60 |
| Hole Diameter (mm) | 4.60 |
| Hole Diameter (Decimal Inch) | 0.1811 |
| Coating Process | Uncoated |
| Included Angle | 0 |
| Shape | Square |
| Insert Hand | Neutral |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | N365-150536E 6190 |
