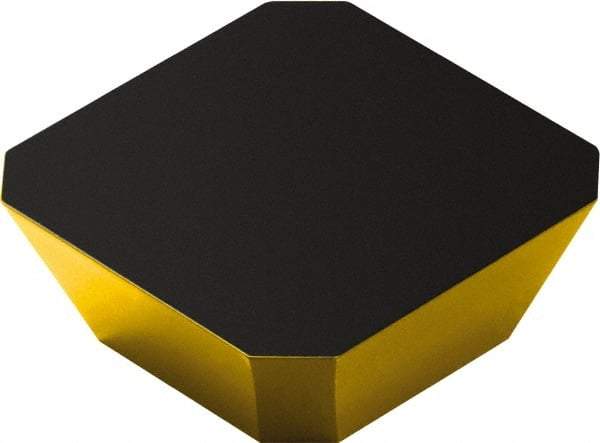

Sandvik Coromant - SEK43 Grade 4230 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 3/16" Thick, 1/2" Inscribed Circle, 1.2mm Corner Radius
Item #: 52065687
Brand: Sandvik Coromant
Model #: 5749458
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SEK |
| Insert Size | 43 |
| Material | Carbide |
| Manufacturer's Grade | 4230 |
| Coating | TiCN/Al2O3/TiN |
| Length (mm) | 9.60 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 4.76 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Corner Radius (mm) | 1.20 |
| Coating Process | MTCVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Maximum Depth of Cut (mm) | 6.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.2520 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | SEKN 12 04 AZ 4230 |
| ISO Number | SEKN 12 04 AZ 4230 |
