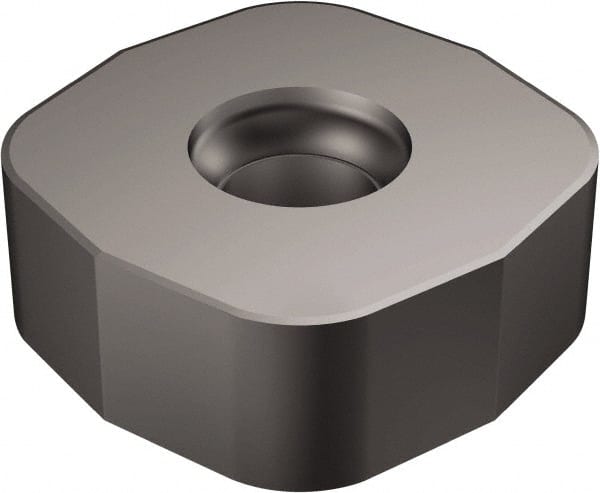

Sandvik Coromant - N365-1505ZNE 6190 Ceramic Milling Insert
Item #: 52063401
Brand: Sandvik Coromant
Model #: 5782733
Product Specifications
| Insert Style | N365 |
| Insert Size | 1505 |
| Material | Ceramic |
| Manufacturer's Grade | 6190 |
| Coating | Uncoated |
| Length (mm) | 6.40 |
| Inscribed Circle (mm) | 15.00 |
| Inscribed Circle (Decimal Inch) | 0.5906 |
| Thickness (mm) | 5.66 |
| Thickness (Decimal Inch) | 0.2228 |
| Corner Radius (Decimal Inch) | 0.1417 |
| Corner Radius (mm) | 3.60 |
| Hole Diameter (mm) | 4.60 |
| Hole Diameter (Decimal Inch) | 0.1811 |
| Coating Process | Uncoated |
| Included Angle | 0 |
| Shape | Square |
| Insert Hand | Neutral |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | N365-1505ZNE 6190 |
