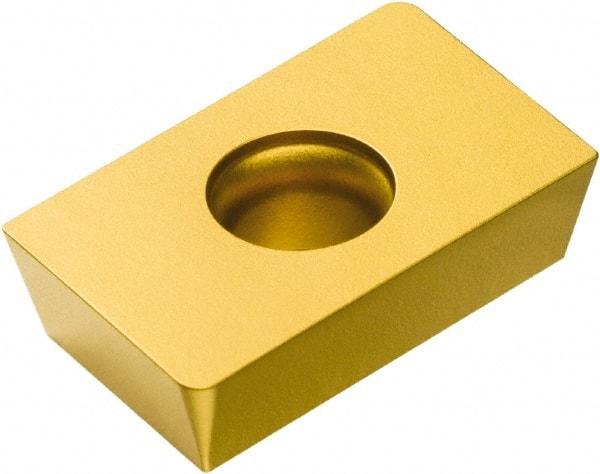

Sandvik Coromant - R216.215T308 Grade 235 Carbide Milling Insert - TiCN/TiN Finish, 3.96mm Thick, 0.157" Inscribed Circle, 0.8mm Corner Radius
Item #: 52062288
Brand: Sandvik Coromant
Model #: 5742827
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R216.2 |
| Insert Size | 15T308 |
| Material | Carbide |
| Manufacturer's Grade | 235 |
| Coating | TiCN/TiN |
| Inscribed Circle (Decimal Inch) | 0.1570 |
| Thickness (mm) | 3.96 |
| Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (Decimal Inch) | 0.0320 |
| Corner Radius (mm) | 0.80 |
| Coating Process | CVD |
| Included Angle | 0 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5910 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | R216.2-15 T3 08-1 235 |
