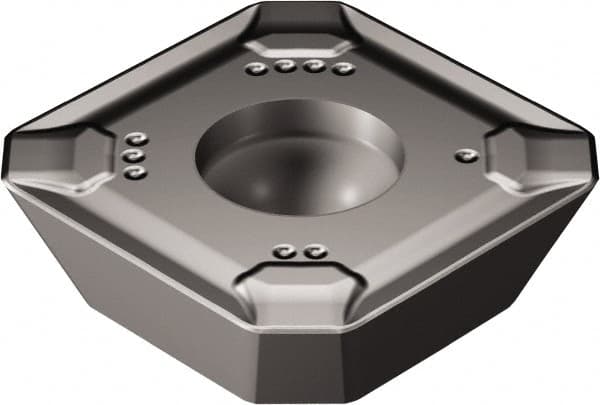

Sandvik Coromant - R245-18 T6 M-KM 3040 Carbide Milling Insert
Item #: 52062254
Brand: Sandvik Coromant
Model #: 5743999
Product Specifications
| Insert Style | R245 |
| Insert Size | 18T6 |
| Material | Carbide |
| Manufacturer's Grade | 3040 |
| Coating | TiCN/Al2O3 |
| Length (mm) | 13.90 |
| Inscribed Circle (mm) | 18.00 |
| Inscribed Circle (Decimal Inch) | 0.7087 |
| Thickness (mm) | 6.10 |
| Thickness (Decimal Inch) | 0.2402 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Hole Diameter (mm) | 5.70 |
| Hole Diameter (Decimal Inch) | 0.2244 |
| Rake Angle | 10 |
| Rake | Positive |
| Coating Process | MTCVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | KM |
| Maximum Depth of Cut (mm) | 9.75 |
| Maximum Depth of Cut (Decimal Inch) | 0.3839 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | R245-18 T6 M-KM 3040 |
