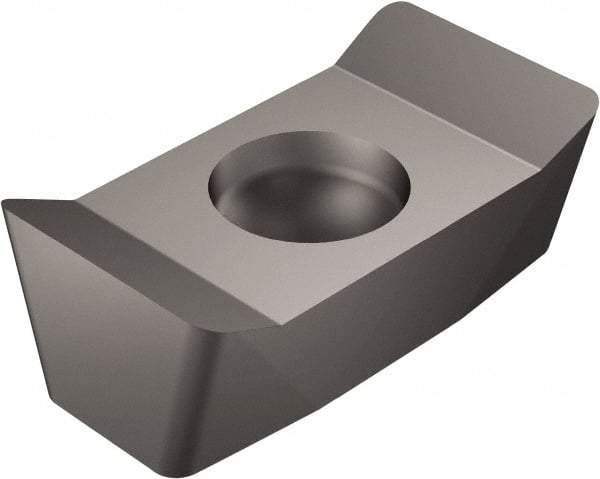

Sandvik Coromant - N331.1A145008 NL Grade H10 Carbide Milling Insert - Uncoated, 4.95mm Thick, 0.571" Inscribed Circle, 0.8mm Corner Radius
Item #: 52061801
Brand: Sandvik Coromant
Model #: 5737706
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N331.1A |
| Insert Size | 145008 |
| Material | Carbide |
| Manufacturer's Grade | H10 |
| Coating | Uncoated |
| Width (mm) | 11.50 |
| Width (Decimal Inch) | 0.4528 |
| Length (mm) | 13.70 |
| Inscribed Circle (Decimal Inch) | 0.5710 |
| Thickness (mm) | 4.95 |
| Thickness (Decimal Inch) | 0.1949 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 4.60 |
| Hole Diameter (Decimal Inch) | 0.1811 |
| Coating Process | Uncoated |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Neutral |
| Chipbreaker | NL |
| Maximum Depth of Cut (mm) | 13.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.5394 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | N331.1A-14 50 08H-NLH10 |
