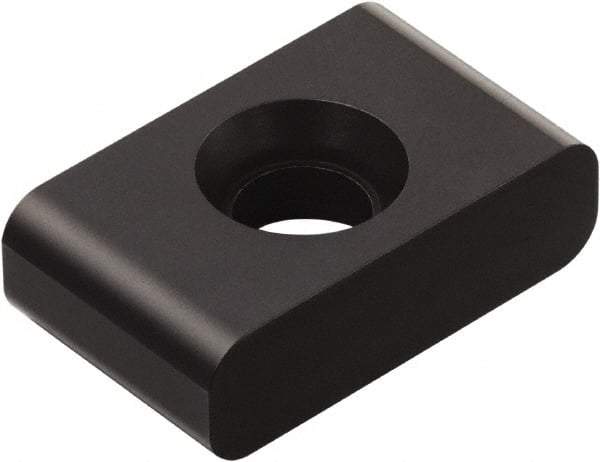

Sandvik Coromant - LNE323 02 Grade 3040 Carbide Milling Insert - TiCN/Al2O3 Finish, 3/8" Thick, 5/8" Inscribed Circle
Item #: 52061470
Brand: Sandvik Coromant
Model #: 5735218
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNE |
| Insert Size | 323 |
| Material | Carbide |
| Manufacturer's Grade | 3040 |
| Coating | TiCN/Al2O3 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (mm) | 9.53 |
| Thickness (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.3750 |
| Coating Process | MTCVD |
| Included Angle | 0 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | 02 |
| Maximum Depth of Cut (Decimal Inch) | 0.4650 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | LNE 323-02 3040 |
