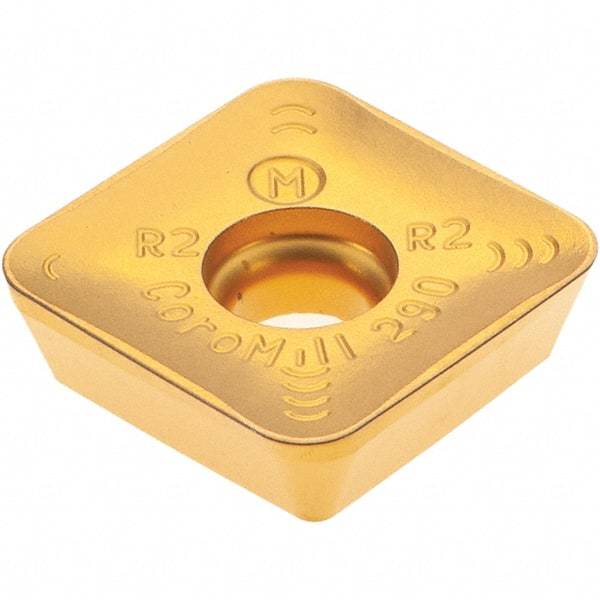

Sandvik Coromant - R290.9012T320 MM Grade 2040 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 5/32" Thick, 13.29mm Inscribed Circle, 2mm Corner Radius
Item #: 52061314
Brand: Sandvik Coromant
Model #: 5744190
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R290.90 |
| Insert Size | 12T320 |
| Material | Carbide |
| Manufacturer's Grade | 2040 |
| Coating | TiCN/Al2O3/TiN |
| Length (mm) | 10.70 |
| Inscribed Circle (mm) | 13.29 |
| Inscribed Circle (Decimal Inch) | 0.5232 |
| Thickness (mm) | 3.97 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (mm) | 2.00 |
| Hole Diameter (mm) | 4.10 |
| Hole Diameter (Decimal Inch) | 0.1614 |
| Coating Process | MTCVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | MM |
| Maximum Depth of Cut (mm) | 10.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.4213 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | R290.90-12T320M-MM 2040 |
