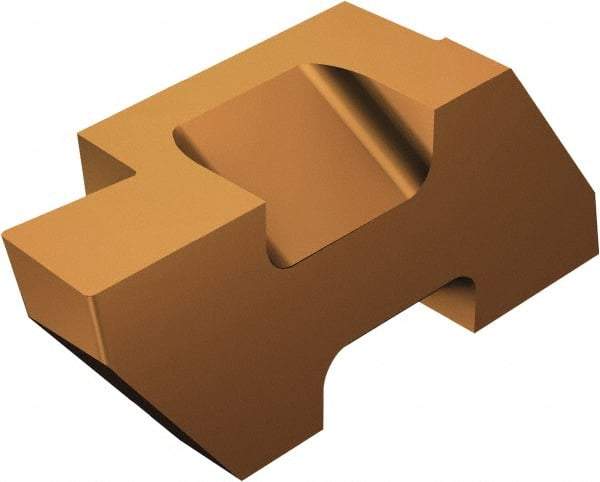

Sandvik Coromant - 2125TLG Grade 1125, 1/8" Cutting Width Carbide Grooving Insert - 0.11" Max Depth of Cut, Right Hand, 0.19mm Corner Radius, TiAlN Finish
Item #: 51632271
Brand: Sandvik Coromant
Model #: 5753473
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TLG |
| Insert Size | 2125 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.1250 |
| Maximum Depth of Cut (Decimal Inch) | 0.1100 |
| Manufacturer's Grade | 1125 |
| Coating | TiAlN |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Relief Angle | 10 |
| Insert Seat Size | 2 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.19 |
| Corner Radius (Decimal Inch) | 0.0075 |
| Coating Process | PVD |
| Series | Top Lok |
| ISO Number | TLG2125R1125 |
| Manufacturers Catalog Number | 5753473 |
| Insert Thickness (Decimal Inch) | 0.2190 |
| Insert Thickness (mm) | 5.5626 |
