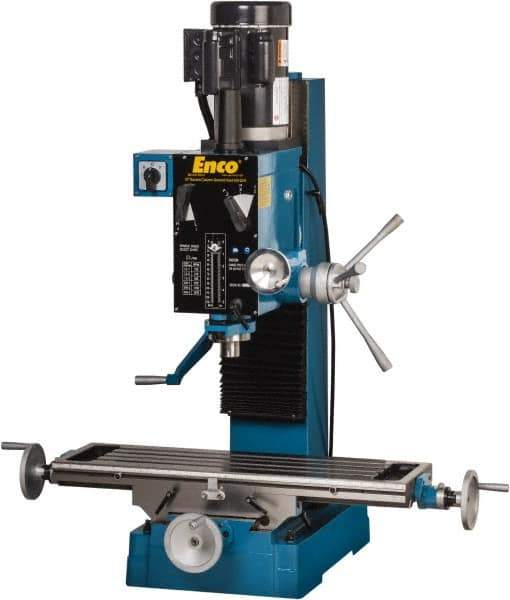

Enco - 1 Phase, Mill Drill Combination - 37-1/2" Table Length x 28" Table Width, 22" Longitudinal Travel, 8" Cross Travel, 6 Spindle Speeds, 2 hp, 220 Volts
Item #: 51626596
Brand: Enco
Exact Tooling IR#: 04
Features and Benefits
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors. Machine phase would commonly match the type of electrical current used in the facility.
| Product Specifications | |
|---|---|
| Phase | 1 |
| Table Length (Inch) | 37-1/2 |
| Table Width (Inch) | 28 |
| Longitudinal Travel (Inch) | 22 |
| Cross Travel (Inch) | 8 |
| Number of Spindle Speeds | 6 |
| Spindle Travel Length (Inch) | 38 |
| Machine Type | Mill Drill Combination |
| Power Down Feed | No |
| Spindle Diameter (Inch) | 3 |
| Spindle Taper Size | R8 |
| T-Slot Size (Inch) | 5/8 |
| Voltage Tolerance | +/- 10% |
| Quill Diameter (Inch) | 3 |
| Number of T-Slots | 4 |
| T-Slot Size (Inch) | 1/2 |
| Head Swivel (Degrees) | 90.00 |
| Horsepower (HP) | 2 |
| Voltage | 220 |
| Overall Height (Inch) | 57 |
