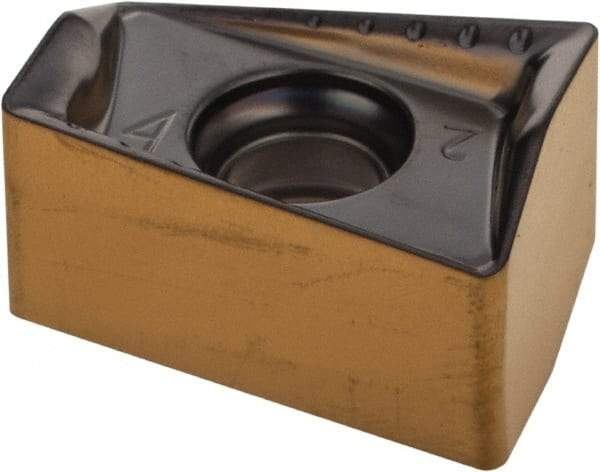

Iscar - H490 ANKX1706 RM Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 0.4094" Thick, 0.8mm Corner Radius
Item #: 51571313
Brand: Iscar
Model #: 5606911
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | H490 ANKX |
| Insert Size | 1706 |
| Material | Carbide |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Width (Decimal Inch) | 0.4410 |
| Length (Decimal Inch) | 0.6575 |
| Thickness (Decimal Inch) | 0.4094 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | RM |
| ISO Number | H490 ANKX 1706PNTR-RM |
