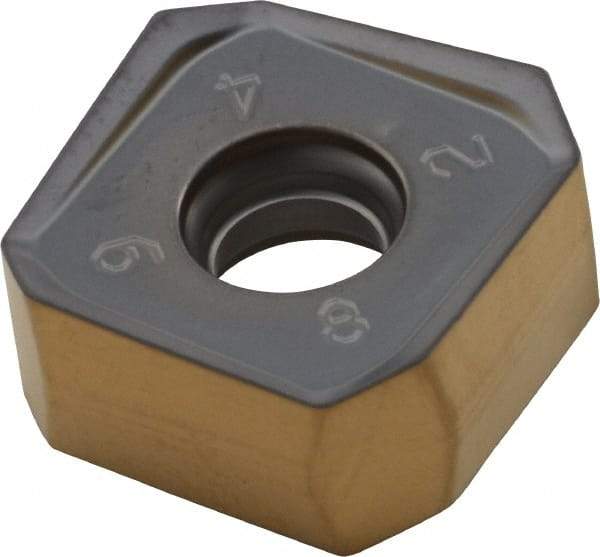

Iscar - S845 SXMU1606 MM Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 0.3" Thick, 0.638" Inscribed Circle, 0.79mm Corner Radius
Item #: 51525574
Brand: Iscar
Model #: 5606102
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | S845 SXMU |
| Insert Size | 1606 |
| Material | Carbide |
| Material Grade | P45/K40 |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Inscribed Circle (Decimal Inch) | 0.6380 |
| Thickness (Decimal Inch) | 0.3000 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.79 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Chipbreaker | MM |
| Maximum Depth of Cut (mm) | 7.14 |
| Maximum Depth of Cut (Decimal Inch) | 0.2810 |
| Manufacturers Catalog Number | S845 SXMU 1606ADTR-MM |
