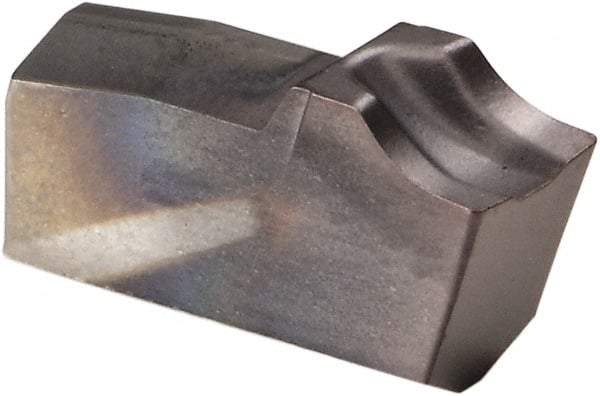

Kennametal - A2040 CF KCU25 Grade, 0.1575" Cutting Width, Carbide Cutoff Insert - 0° Neutral Lead Angle, 0.008" Cnr Rad, AlTiN Coated, Single End
Item #: 51487122
Brand: Kennametal
Model #: 4111108
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | A2 |
| Insert Size | 040 |
| Lead Angle Direction | Neutral |
| Lead Angle | 0 |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Material Grade | C2/C6 |
| Manufacturer's Grade | KCU25 |
| Coating | AlTiN |
| Series | A2 |
| Relief Angle | 2 |
| Chipbreaker | CF |
| Full Radius | No |
| Coating Process | PVD |
| Overall Length (mm) | 10.71 |
| Overall Length (Decimal Inch) | 0.4217 |
| Cutting Height (mm) | 4.68 |
| Cutting Height (Decimal Inch) | 0.1843 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (mm) | 0.20 |
| Insert Hand | Neutral |
| Insert Holding Method | Clamp |
| Insert Seat Size | 4 |
