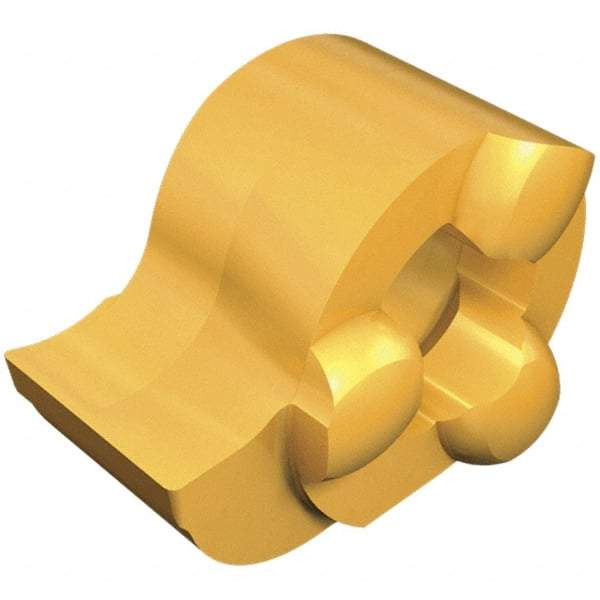

Iscar - 11222010GIQL Grade IC528, 2.21mm Cutting Width Carbide Grooving Insert - 0.89mm Max Depth of Cut, Left Hand, 0.1mm Corner Radius, TiCN/TiN Finish
Item #: 51406213
Brand: Iscar
Model #: 6402662
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIQL |
| Insert Size | 11222010 |
| Material | Carbide |
| Cutting Width (mm) | 2.21 |
| Cutting Width (Decimal Inch) | 0.0870 |
| Maximum Depth of Cut (mm) | 0.89 |
| Maximum Depth of Cut (Decimal Inch) | 0.0350 |
| Manufacturer's Grade | IC528 |
| Coating | TiCN/TiN |
| Insert Hand | Left Hand |
| Multi-Use Tool | Yes |
| Multi-Use Application | Boring; Profiling; Turning |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Coating Process | PVD |
| Overall Length (mm) | 10.67 |
| Overall Length (Decimal Inch) | 0.4200 |
| Series | ChamGroove |
