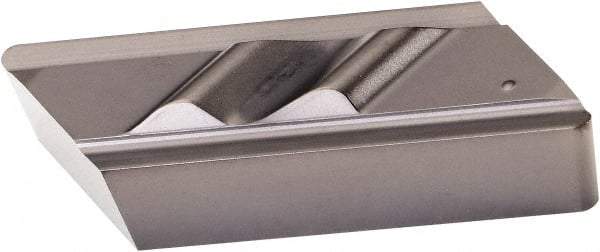

Kennametal - NPL332, KCU10 Grade Carbide Profiling Insert - AlTiN Finish, 55° Incl Angle, Parallelogram, 0.8949" Side Length, 3/16" Thick, 1/32" Corner Radius
Item #: 51118685
Brand: Kennametal
Model #: 4045406
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | NPL |
| Insert Size | 332 |
| Manufacturer's Grade | KCU10 |
| Width (mm) | 9.52 |
| Width (Decimal Inch) | 0.3748 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (Inch) | 3/16 |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Relief Angle | 0 |
| Coating | AlTiN |
| Insert Length (mm) | 18.62 |
| Insert Length (Decimal Inch) | 0.7330 |
| Coating Process | PVD |
| Side Length (Decimal Inch) | 0.8949 |
| Side Length (mm) | 22.73 |
| Chipbreaker | 20 |
| Included Angle | 55 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Series | Top Notch |
| Insert Holding Method | Clamp |
| Shape | Parallelogram |
