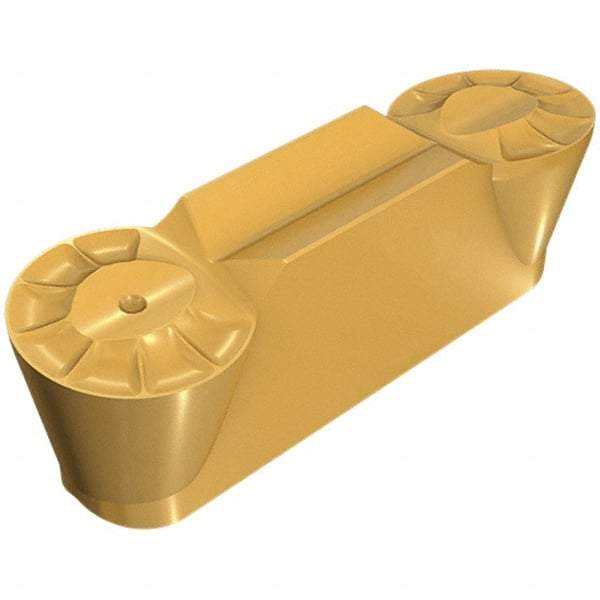

Iscar - 3003HGPL Y Grade IC08, 3mm Cutting Width Carbide Grooving Insert - 1.8mm Max Depth of Cut, Left Hand, 0.3mm Corner Radius, Uncoated
Item #: 51072346
Brand: Iscar
Model #: 6200234
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HGPL |
| Insert Size | 3003 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1180 |
| Maximum Depth of Cut (mm) | 1.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.0710 |
| Manufacturer's Grade | IC08 |
| Coating | Uncoated |
| Insert Hand | Left Hand |
| Relief Angle | 7 |
| Chipbreaker | Y |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.30 |
| Corner Radius (Decimal Inch) | 0.0120 |
| Overall Length (mm) | 16.00 |
| Overall Length (Decimal Inch) | 0.6300 |
| Series | Heliface |
