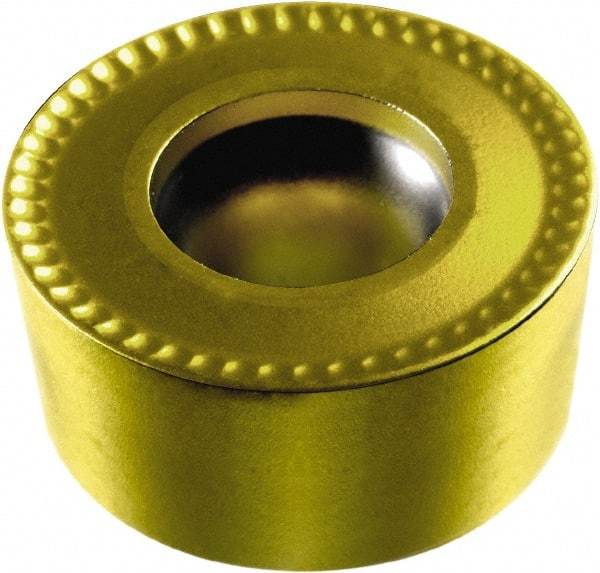

Sandvik Coromant - RCMT0602M0 5E Grade 235 Carbide Milling Insert - TiCN/TiN Finish, 3/32" Thick, 6mm Inscribed Circle, 3mm Corner Radius
Item #: 50983501
Brand: Sandvik Coromant
Model #: 5740651
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 0602M0 |
| Material | Carbide |
| Manufacturer's Grade | 235 |
| Coating | TiCN/TiN |
| Length (mm) | 6.00 |
| Length (Decimal Inch) | 0.2362 |
| Inscribed Circle (mm) | 6.00 |
| Inscribed Circle (Decimal Inch) | 0.2362 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (Decimal Inch) | 0.1181 |
| Corner Radius (mm) | 3.00 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Coating Process | CVD |
| Shape | Round |
| Insert Hand | Neutral |
| Chipbreaker | 5E |
| Manufacturers Catalog Number | RCMT 06 02 M0 235 |
