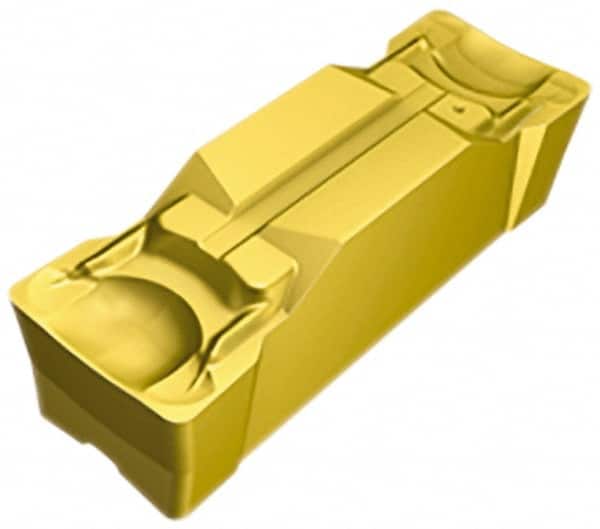

Sandvik Coromant - N123J204750003-GM 2135 Carbide Grooving Insert
Item #: 50983154
Brand: Sandvik Coromant
Model #: 5736237
Product Specifications
| Insert Style | N123 |
| Insert Size | J2 |
| Material | Carbide |
| Cutting Width (mm) | 4.75 |
| Cutting Width (Decimal Inch) | 0.1870 |
| Maximum Depth of Cut (mm) | 22.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.8898 |
| Manufacturer's Grade | 2135 |
| Coating | TiCN/Al2O3/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7 |
| Insert Seat Size | J |
| Chipbreaker | GM |
| Multi-Use Application | Parting |
| Multi-Use Tool | Yes |
| Corner Radius (mm) | 0.30 |
| Corner Radius (Decimal Inch) | 0.0118 |
| Coating Process | CVD |
| Series | CoroCut 1-2 |
| ISO Number | N123J204750003GM2135 |
| Manufacturers Catalog Number | 5736237 |
| Insert Thickness (Decimal Inch) | 0.1713 |
| Insert Thickness (mm) | 4.3500 |
