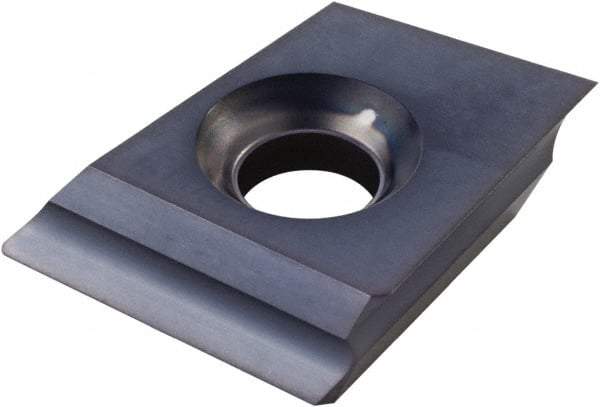

Kennametal - D2FIX150503 MS Grade KCU10 Carbide Turning Insert - AlTiN Finish, 56° Irregular, 5mm Thick, 0.012" Corner Radius
Item #: 50958834
Brand: Kennametal
Model #: 4051111
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | D2FIX |
| Insert Size | 150503 |
| Material | Carbide |
| Length (mm) | 14.07 |
| Length (Decimal Inch) | 0.5540 |
| Thickness (Decimal Inch) | 0.1970 |
| Thickness (mm) | 5.00 |
| Corner Radius (Decimal Inch) | 0.0120 |
| Manufacturer's Grade | KCU10 |
| Coating | AlTiN |
| Chip Breaker | MS |
| Hole Diameter (mm) | 5.10 |
| Hole Diameter (Decimal Inch) | 0.2008 |
| ISO Number | D2FIX150503RMS |
| Rake Angle | 32 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Included Angle | 56 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Series | Fix-Perfect |
| Insert Holding Method | Pin |
| Shape | Irregular |
