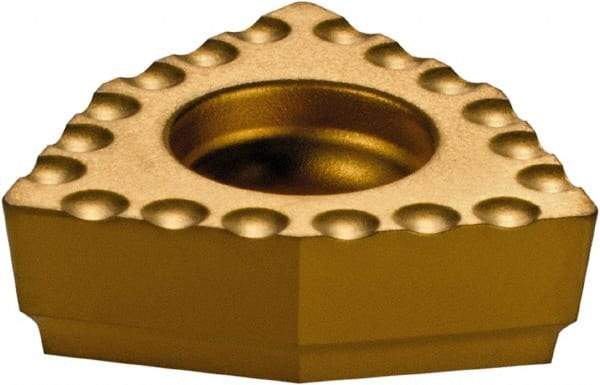

Komet - WOEX06T304 01 Grade BK6425 Carbide Indexable Drill Insert - TiCN/Al2O3/TiN Finish, Trigon, 10mm Inscribed Circle
Item #: 50938075
Brand: Komet
Model #: W2934010046425
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WOEX |
| Insert Size | 06T304 |
| Material | Carbide |
| Manufacturer's Grade | BK6425 |
| Inscribed Circle (mm) | 10.00 |
| Inscribed Circle (Decimal Inch) | 0.3937 |
| Thickness (mm) | 3.80 |
| Thickness (Decimal Inch) | 0.1496 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Shape | Trigon |
| Length (mm) | 6.60 |
| Length (Decimal Inch) | 0.2598 |
| Relief Angle | 8 |
| Included Angle | 84 |
| Coating | TiCN/Al2O3/TiN |
| Coating Process | CVD |
| Cutting Direction | Neutral |
| Chipbreaker | 01 |
