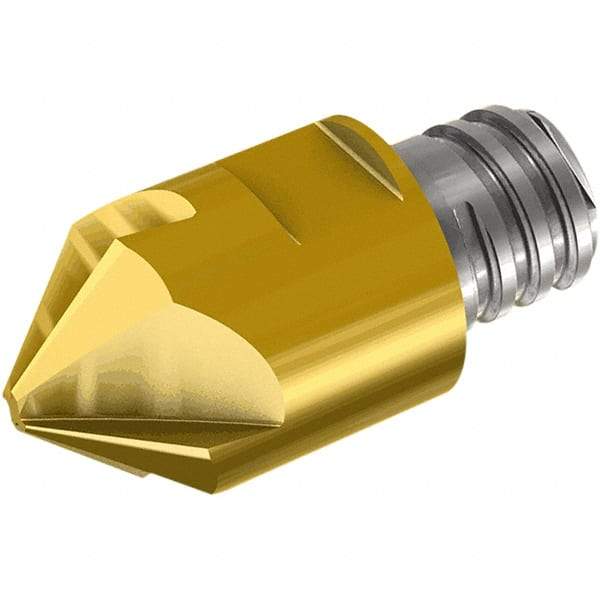

Iscar - MM ECF Grade IC908 Carbide Chamfer Milling Tip Insert - TiAlN Finish, 4 Flutes, 0.079" Cutting Diam, 3/8" Depth of Cut, 0.512" Extension
Item #: 50683242
Brand: Iscar
Model #: 5668620
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Milling Tip Style | MM ECF |
| Milling Tip Type | Chamfer Mill |
| Material | Carbide |
| Cutting Diameter (Decimal Inch) | 0.0790 |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC908 |
| Depth of Cut (Decimal Inch) | 0.3750 |
| Number of Flutes | 4 |
| Coating | TiAlN |
| Milling Tip Full Description | Chamfer/Countersink |
| Coating Process | PVD |
| Extension From Holder (Decimal Inch) | 0.5120 |
| Thread Size | T06 |
| Style | MM ECF120-08/375-4T06 |
| Manufacturers Catalog Number | MM ECF120-08/375-4T06 |
| Chamfer Angle | 30 |
