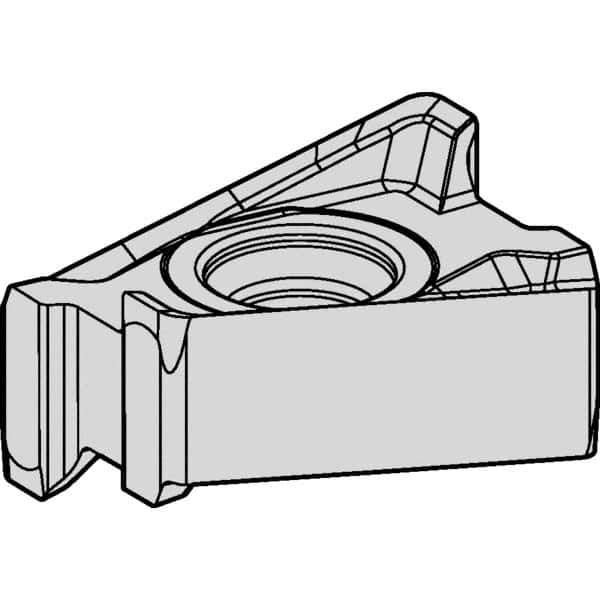

Kennametal - LNPU541 GE Grade KC520M Carbide Milling Insert - TiAlN Finish, 7mm Thick, 1/64" Corner Radius
Item #: 50521228
Brand: Kennametal
Model #: 5608034
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNPU |
| Insert Size | 541 |
| Material | Carbide |
| Manufacturer's Grade | KC520M |
| Coating | TiAlN |
| Width (mm) | 10.00 |
| Length (mm) | 17.00 |
| Thickness (mm) | 7.00 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Hole Diameter (mm) | 4.65 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | GE |
| Manufacturers Catalog Number | LNPU541SRGE |
