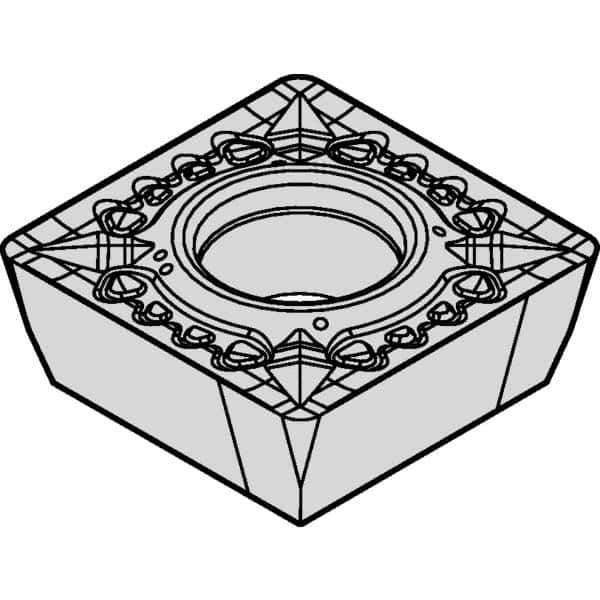

Kennametal - SDET434 GB Grade KC725M Carbide Milling Insert - TiN/TiCN/TiN Finish, 3/16" Thick, 1/2" Inscribed Circle, 1.6mm Corner Radius
Item #: 50521079
Brand: Kennametal
Model #: 5894815
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SDET |
| Insert Size | 434 |
| Material | Carbide |
| Manufacturer's Grade | KC725M |
| Coating | TiN/TiCN/TiN |
| Width (Decimal Inch) | 0.5000 |
| Length (Inch) | 1/2 |
| Length (Decimal Inch) | 0.5000 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (mm) | 1.60 |
| Hole Diameter (mm) | 4.40 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | GB |
| Manufacturers Catalog Number | SDET434SNGB |
