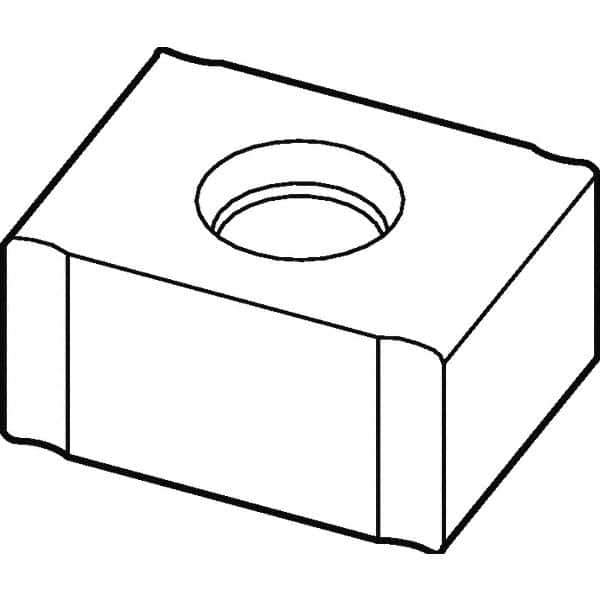

Kennametal - LNEU1250 Grade KCPM40 Carbide Milling Insert - TiAlN/AlCrN Finish, 5mm Thick, 1/32" Corner Radius
Item #: 50520998
Brand: Kennametal
Model #: 5975094
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNEU |
| Insert Size | 1250 |
| Material | Carbide |
| Manufacturer's Grade | KCPM40 |
| Coating | TiAlN/AlCrN |
| Width (Inch) | 3/8 |
| Width (Decimal Inch) | 0.3750 |
| Length (Inch) | 1/2 |
| Length (Decimal Inch) | 0.5000 |
| Thickness (mm) | 5.00 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Hole Diameter (mm) | 4.24 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Neutral |
| ISO Number | LNEU1250R08 |
| ANSI Number | LNEU1250R08 |
