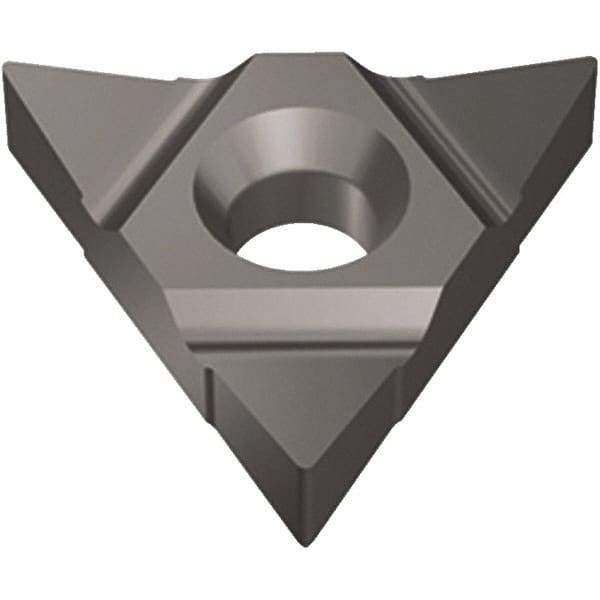

Kennametal - 6-10 TPI, Internal Thread, Partial Profile 60° Standard, KTMDU KC610M Grade Thread Mill Insert - Carbide, TiN Coating
Item #: 50501469
Brand: Kennametal
Model #: 5593692
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness-resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Insert Style | KTMDU |
| Thread Type | Internal |
| Thread Standard | Partial Profile 60 Degrees |
| Threads Per Inch | 6-10 |
| Length (mm) | 11.00 |
| Manufacturer's Grade | KC610M |
| Material | Carbide |
| Coating | TiN |
| Coating Process | PVD |
| Inscribed Circle (mm) | 3.25 |
