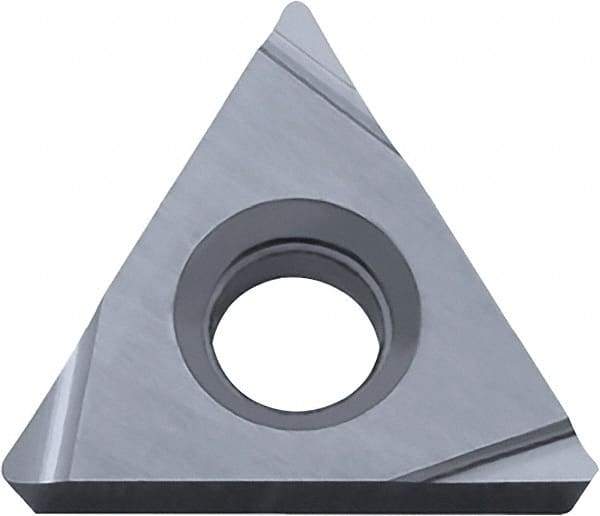

Kyocera - TPGH222 Grade PR930 Carbide Turning Insert - TiCN Finish, 60° Triangle, 1/4" Inscr Circle, 1/8" Thick, 1/32" Corner Radius
Item #: 50474915
Brand: Kyocera
Model #: 8815345
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPGH |
| Insert Size | 222 |
| Material | Carbide |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.18 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.7938 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | PR930 |
| Coating | TiCN |
| Material Grade | Super Micrograin |
| Hole Diameter (mm) | 3.30 |
| Hole Diameter (Decimal Inch) | 0.1300 |
| ISO Number | TPGH110308R |
| Rake | Positive |
| Relief Angle | 11 |
| Coating Process | PVD |
| Manufacturers Catalog Number | TPGH222R PR930 |
| Primary Workpiece Material | P |
| Included Angle | 60 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Triangle |
