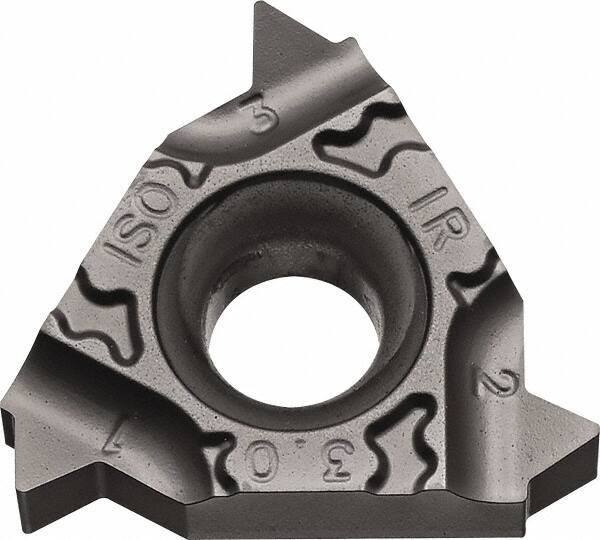

Kyocera - 16IR200ISOTF PR1115 Carbide Laydown Threading Insert
Item #: 50473818
Brand: Kyocera
Model #: 8829803
Product Specifications
| Material | Carbide |
| Insert Style | 16IR |
| Insert Hand | Right Hand |
| Thread Type | Internal |
| Thread Standard | ISO |
| Manufacturer's Grade | PR1115 |
| Internal Pitch (mm) | 2 |
| Pitch (mm) | 2 |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Inscribed Circle (mm) | 9.53 |
| Thickness (Decimal Inch) | 0.1449 |
| Thickness (mm) | 3.68 |
| Included Angle of Threading Tip | 60 |
| Hole Diameter (mm) | 4.00 |
| Hole Diameter (Decimal Inch) | 0.1575 |
| Coating | TiAlN |
| Coating Process | PVD |
| Corner Radius (mm) | 0.14 |
| Corner Radius (Decimal Inch) | 0.0055 |
