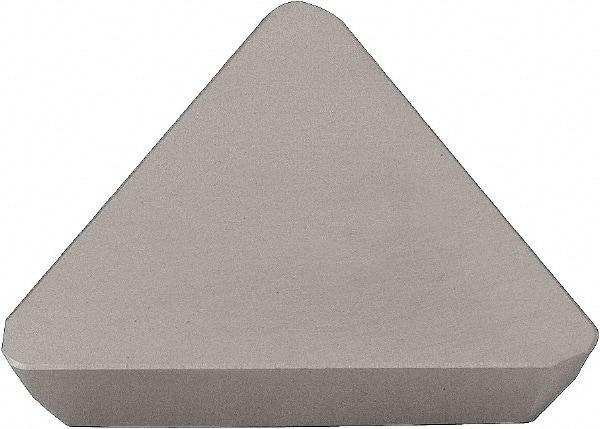

Kyocera - TEKN43 Grade PR1225 Carbide Milling Insert - Megacoat Finish, 3/16" Thick, 1/2" Inscribed Circle
Item #: 50473479
Brand: Kyocera
Model #: 8833972
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TEKN |
| Insert Size | 43 |
| Material | Carbide |
| Material Grade | Micrograin |
| Manufacturer's Grade | PR1225 |
| Coating | Megacoat |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Relief Angle | 22.000 |
| Coating Process | PVD |
| Shape | Triangle |
| Insert Hand | Right Hand |
| Cutting Edge Style | Chamfered |
| Manufacturers Catalog Number | TEKN43PTTR |
