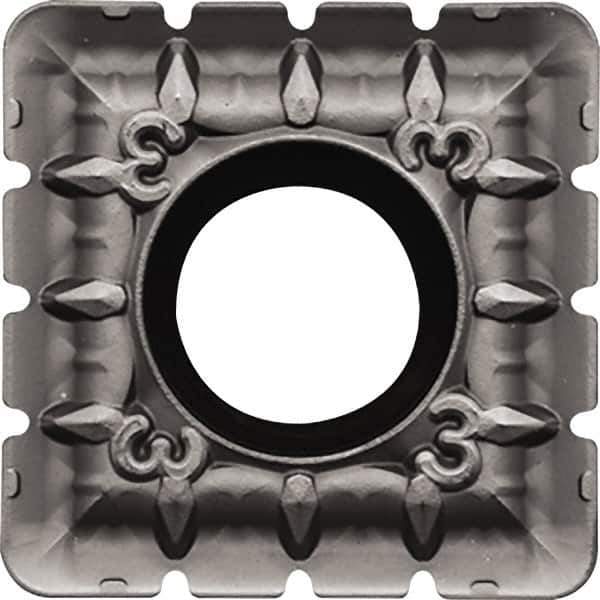

Kyocera - SPMT1806 NB3 Grade PR1225 Carbide Milling Insert - Megacoat Finish, 6.35mm Thick, 18mm Inscribed Circle
Item #: 50473446
Brand: Kyocera
Model #: 8833907
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPMT |
| Insert Size | 1806 |
| Material | Carbide |
| Material Grade | Micrograin |
| Manufacturer's Grade | PR1225 |
| Coating | Megacoat |
| Width (mm) | 18.00 |
| Width (Decimal Inch) | 0.7087 |
| Inscribed Circle (mm) | 18.00 |
| Inscribed Circle (Decimal Inch) | 0.7087 |
| Thickness (mm) | 6.35 |
| Thickness (Decimal Inch) | 0.2500 |
| Hole Diameter (mm) | 6.80 |
| Hole Diameter (Decimal Inch) | 0.2677 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | NB3 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | SPMT1806EDER-NB3 |
