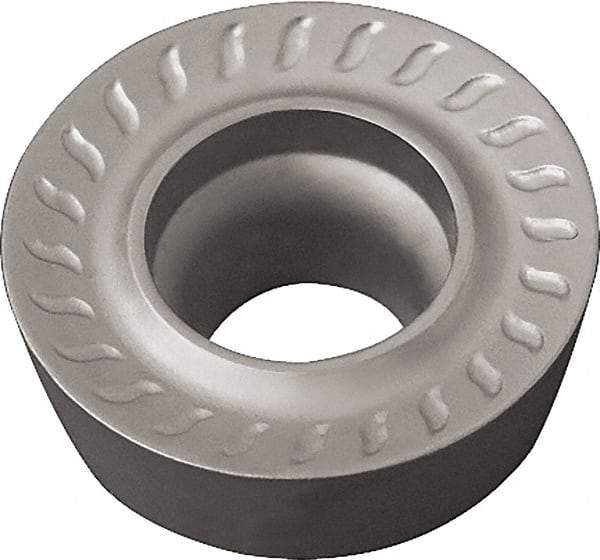

Kyocera - RPMT1204 H Grade PR1230 Carbide Milling Insert - Megacoat Finish, 4.76mm Thick, 0.4mm Corner Radius
Item #: 50473164
Brand: Kyocera
Model #: 8833985
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RPMT |
| Insert Size | 1204 |
| Material | Carbide |
| Manufacturer's Grade | PR1230 |
| Coating | Megacoat |
| Width (mm) | 12.00 |
| Width (Decimal Inch) | 0.4724 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Relief Angle | 11.000 |
| Rake Angle | 3 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Round |
| Insert Hand | Right Hand |
| Chipbreaker | H |
| Manufacturers Catalog Number | 1204M0-H |
