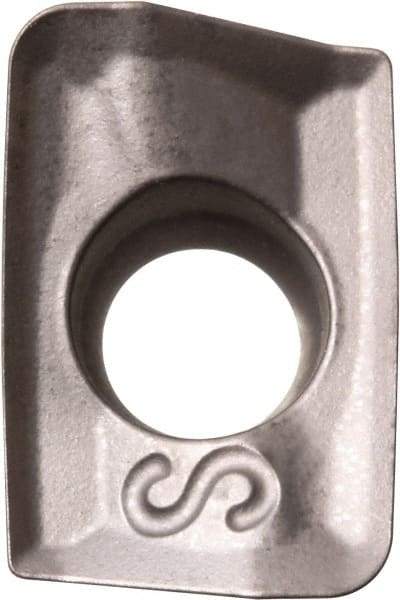

Kyocera - BDMT070302 JS Grade PR830 Carbide Milling Insert - TiAlN/TiN Finish, 2.6mm Thick, 0.2mm Corner Radius
Item #: 50472265
Brand: Kyocera
Model #: 8821876
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | BDMT |
| Insert Size | 070302 |
| Material | Carbide |
| Manufacturer's Grade | PR830 |
| Coating | TiAlN/TiN |
| Width (mm) | 4.60 |
| Width (Decimal Inch) | 0.1811 |
| Length (mm) | 6.70 |
| Length (Decimal Inch) | 0.2638 |
| Thickness (mm) | 2.60 |
| Thickness (Decimal Inch) | 0.1024 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Hole Diameter (mm) | 2.30 |
| Hole Diameter (Decimal Inch) | 0.0906 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Included Angle | 82 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | JS |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | BDMT070302ERJS |
