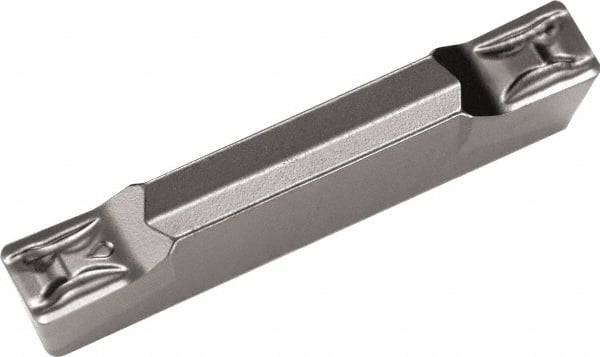

Kyocera - GDM4020N040GM PR1215 Carbide Grooving Insert
Item #: 50469261
Brand: Kyocera
Model #: 8834579
Product Specifications
| Insert Style | GDM |
| Insert Size | 4020 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Material Grade | Micrograin |
| Manufacturer's Grade | PR1215 |
| Coating | Megacoat |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.30 |
| Cutting Height (Decimal Inch) | 0.1693 |
| Chipbreaker | GM |
| Multi-Use Application | Cut-Off |
| Multi-Use Tool | Yes |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.015748 |
| Coating Process | PVD |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Series | GD |
| Manufacturers Catalog Number | GDM4020N-040GM |
| Insert Thickness (Decimal Inch) | 0.1299 |
| Insert Thickness (mm) | 3.3000 |
| Series Number | GD |
| Corner Radius (Inch) | 0.015748 |
