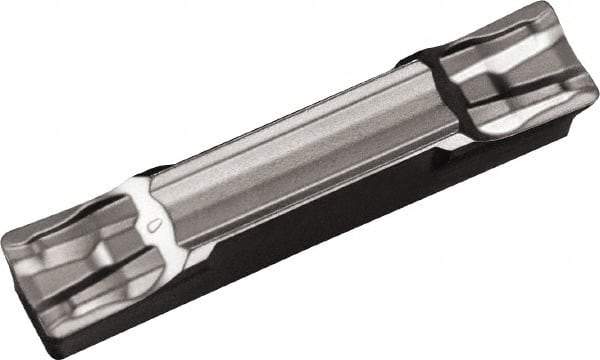

Kyocera - 2020GDFM GM Grade PR1225, 2mm Cutting Width Carbide Grooving Insert - Neutral, 0.2mm Corner Radius, Megacoat Finish
Item #: 50468792
Brand: Kyocera
Model #: 8837277
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GDFM |
| Insert Size | 2020 |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Material Grade | Micrograin |
| Manufacturer's Grade | PR1225 |
| Coating | Megacoat |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 3.90 |
| Cutting Height (Decimal Inch) | 0.1535 |
| Chipbreaker | GM |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.007874 |
| Coating Process | PVD |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Series | GDFM |
| Manufacturers Catalog Number | GDFM2020N-020GM |
| Insert Thickness (Decimal Inch) | 0.0591 |
| Insert Thickness (mm) | 1-1/2 |
