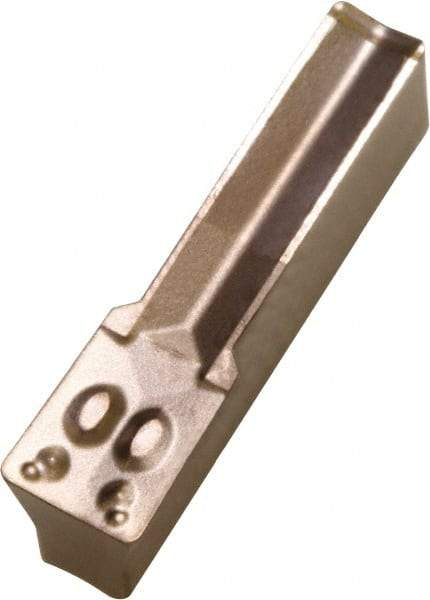

Kyocera - 60-04FMM Grade PR930, 6mm Cutting Width Carbide Grooving Insert - 0.4mm Corner Radius, TiCN Finish
Item #: 50467422
Brand: Kyocera
Model #: 8810457
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | FMM |
| Insert Size | 60-04 |
| Material | Carbide |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Material Grade | Super Micrograin |
| Manufacturer's Grade | PR930 |
| Coating | TiCN |
| Cutting Height (mm) | 3.50 |
| Cutting Height (Decimal Inch) | 0.1378 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.015748 |
| Coating Process | PVD |
| Overall Length (mm) | 12.00 |
| Overall Length (Decimal Inch) | 0.4724 |
| Series | FMM |
| Manufacturers Catalog Number | FMM60-04 |
| Insert Thickness (Decimal Inch) | 0.1575 |
| Insert Thickness (mm) | 4 |
