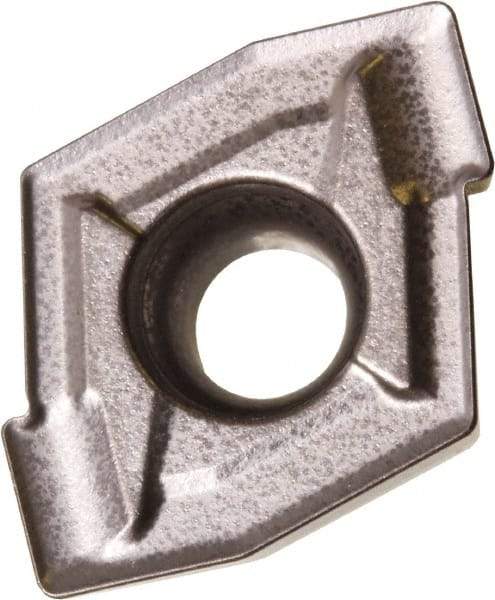

Kyocera - ZCMT80304 SP Grade PR1225 Carbide Indexable Drill Insert - Megacoat Finish, Diamond
Item #: 50467240
Brand: Kyocera
Model #: 8832331
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
MEGACOAT is a high strength super micro-grain substrate designed for superior hardness, toughness and heat resistance. It offers good surface smoothness and is ideal for machining steel and stainless steel.
| Product Specifications | |
|---|---|
| Insert Style | ZCMT |
| Insert Size | 80304 |
| Material | Carbide |
| Material Grade | Micrograin |
| Manufacturer's Grade | PR1225 |
| Thickness (mm) | 3.18 |
| Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.015748 |
| Shape | Diamond |
| Width (Decimal Inch) | 0.3228 |
| Width (mm) | 8.20 |
| Length (mm) | 9.70 |
| Length (Decimal Inch) | 0.3819 |
| Hole Diameter (mm) | 2.90 |
| Hole Diameter (Decimal Inch) | 0.1142 |
| Relief Angle | 7 |
| Coating | Megacoat |
| Coating Process | PVD |
| Cutting Direction | Right Hand |
| Chipbreaker | SP |
