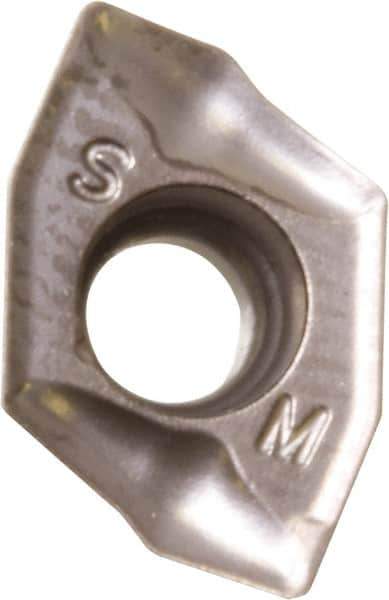

Kyocera - ZXMT70305 Grade PR1225 Carbide Indexable Drill Insert - Megacoat Finish, Octagon
Item #: 50467232
Brand: Kyocera
Model #: 8828386
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
MEGACOAT is a high strength super micro-grain substrate designed for superior hardness, toughness and heat resistance. It offers good surface smoothness and is ideal for machining steel and stainless steel.
| Product Specifications | |
|---|---|
| Insert Style | ZXMT |
| Insert Size | 70305 |
| Material | Carbide |
| Material Grade | Micrograin |
| Manufacturer's Grade | PR1225 |
| Thickness (mm) | 3.24 |
| Thickness (Decimal Inch) | 0.1276 |
| Corner Radius (mm) | 0.50 |
| Corner Radius (Decimal Inch) | 0.019685 |
| Shape | Octagon |
| Width (Decimal Inch) | 0.3150 |
| Width (mm) | 8.00 |
| Length (mm) | 10.20 |
| Length (Decimal Inch) | 0.4016 |
| Hole Diameter (mm) | 3.00 |
| Hole Diameter (Decimal Inch) | 0.1181 |
| Relief Angle | 7 |
| Coating | Megacoat |
| Coating Process | PVD |
| Cutting Direction | Right Hand |
