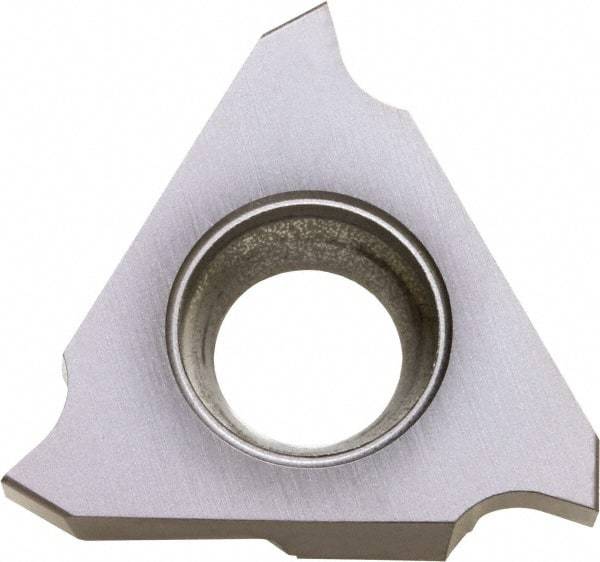

Kyocera - 43GBA Grade PV7040, 4mm Cutting Width Cermet Grooving Insert - 5mm Max Depth of Cut, Right Hand, 0.4mm Corner Radius, TiC/TiN (Megacoat) Finish
Item #: 50462944
Brand: Kyocera
Model #: 8836753
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | GBA |
| Insert Size | 43 |
| Material | Cermet |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Manufacturer's Grade | PV7040 |
| Coating | TiC/TiN (Megacoat) |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Relief Angle | 2 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.4000 |
| Corner Radius (Decimal Inch) | 0.015748 |
| Coating Process | PVD |
| Series | GBA |
| Manufacturers Catalog Number | GBA43R400-040 |
| Insert Thickness (Decimal Inch) | 0.1870 |
