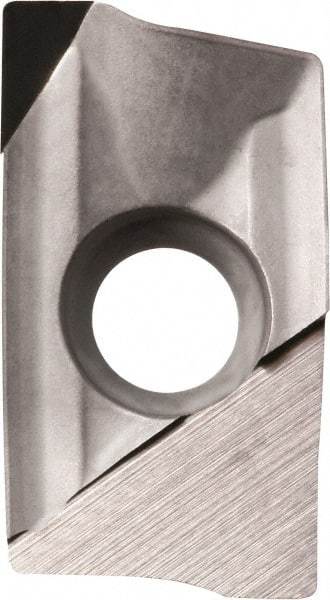

Kyocera - BDMT11T302 Grade KPD001 PCD Milling Insert - 3.8mm Thick, 0.2mm Corner Radius
Item #: 50459981
Brand: Kyocera
Model #: 8822199
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | BDMT |
| Insert Size | 11T302 |
| Material | PCD |
| Material Grade | Micrograin |
| Manufacturer's Grade | KPD001 |
| Width (mm) | 6.70 |
| Width (Decimal Inch) | 0.2638 |
| Length (mm) | 11.00 |
| Length (Decimal Inch) | 0.4331 |
| Thickness (mm) | 3.80 |
| Thickness (Decimal Inch) | 0.1496 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Relief Angle | 13.000 |
| Included Angle | 82 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | BDMT11T302FR |
