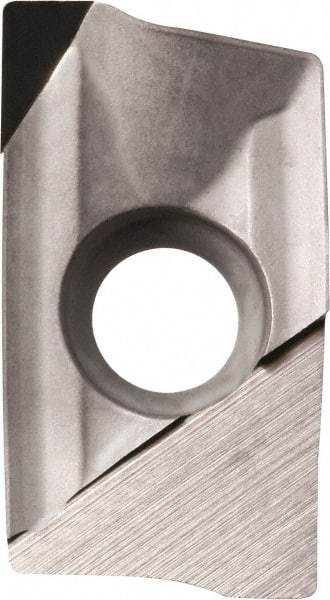

Kyocera - BDMT170402 Grade KPD230 PCD Milling Insert - 4.9mm Thick, 0.2mm Corner Radius
Item #: 50446244
Brand: Kyocera
Model #: 8829660
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | BDMT |
| Insert Size | 170402 |
| Material | PCD |
| Manufacturer's Grade | KPD230 |
| Width (mm) | 9.60 |
| Width (Decimal Inch) | 0.3780 |
| Length (mm) | 17.00 |
| Length (Decimal Inch) | 0.6693 |
| Thickness (mm) | 4.90 |
| Thickness (Decimal Inch) | 0.1929 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Relief Angle | 13.000 |
| Included Angle | 82 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | BDMT170402FR |
