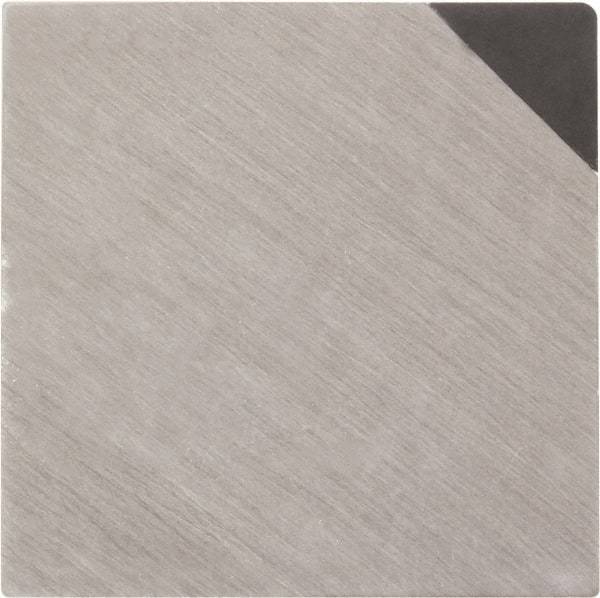

Kyocera - SPG421 Grade KPD001 Polycrystalline Diamond (PCD) Turning Insert - Uncoated, 90° Square, 1/2" Inscr Circle, 1/8" Thick, 1/64" Corner Radius
Item #: 50444959
Brand: Kyocera
Model #: 8831040
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | SPG |
| Insert Size | 421 |
| Material | Polycrystalline Diamond (PCD) |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.18 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | KPD001 |
| Coating | Uncoated |
| Material Grade | Super Micrograin |
| ISO Number | SPGN120304NE |
| Rake | Positive |
| Relief Angle | 11 |
| Manufacturers Catalog Number | SPG421NE KPD001 |
| Primary Workpiece Material | N |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Sharp |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Square |
