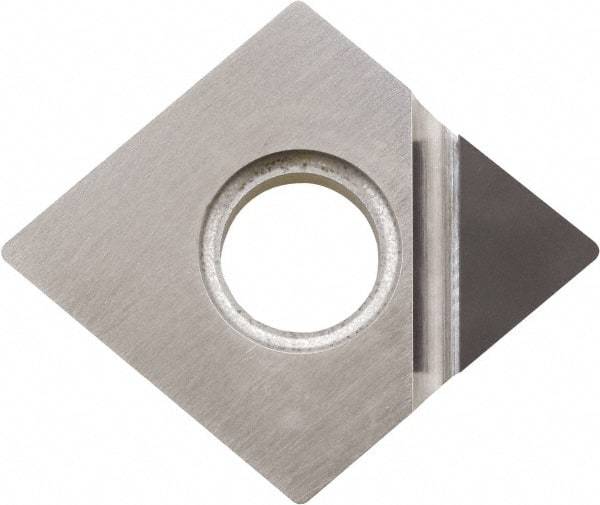

Kyocera - CNMM431 Grade KPD001 Polycrystalline Diamond (PCD) Turning Insert - Uncoated, 80° Diamond, 1/2" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 50444702
Brand: Kyocera
Model #: 8809775
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | CNMM |
| Insert Size | 431 |
| Material | Polycrystalline Diamond (PCD) |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | KPD001 |
| Coating | Uncoated |
| Material Grade | Super Micrograin |
| Hole Diameter (mm) | 5.16 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| ISO Number | CNMM120404M |
| Rake | Negative |
| Relief Angle | 0 |
| Manufacturers Catalog Number | CNMM431M KPD001 |
| Primary Workpiece Material | S |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Pin & Clamp |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Diamond |
