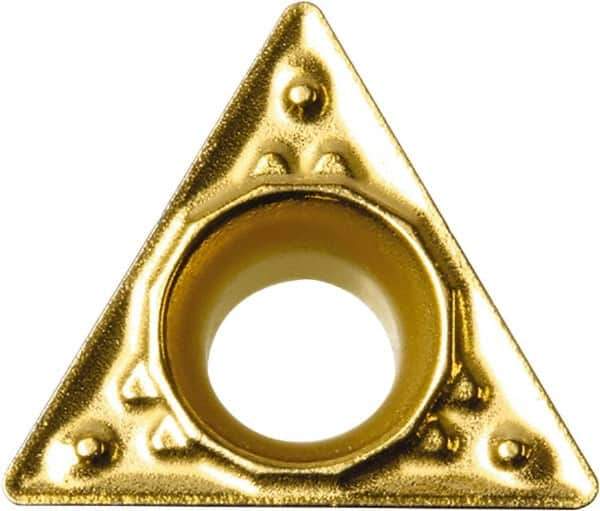

Kyocera - TPMT220.5 HQ Grade PV720 Cermet Turning Insert - TiCN (Megacoat Nano) Finish, 60° Triangle, 1/4" Inscr Circle, 1/8" Thick, 0.008" Corner Radius
Item #: 50442623
Brand: Kyocera
Model #: 8842893
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | TPMT |
| Insert Size | 220.5 |
| Material | Cermet |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | PV720 |
| Coating | TiCN (Megacoat Nano) |
| Material Grade | Micrograin |
| Chip Breaker | HQ |
| Hole Diameter (mm) | 3.30 |
| Hole Diameter (Decimal Inch) | 0.1300 |
| ISO Number | TPMT110302HQ |
| Rake | Positive |
| Rake Angle | 15 |
| Relief Angle | 11 |
| Coating Process | PVD |
| Manufacturers Catalog Number | TPMT2205HQ PV720 |
| Primary Workpiece Material | P |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Triangle |
