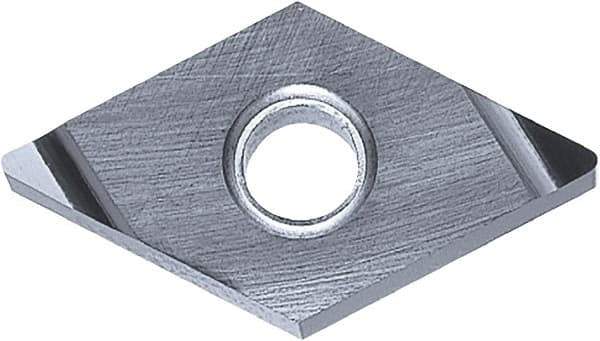

Kyocera - DNGG332 S Grade PV90 Cermet Turning Insert - TiN Finish, 55° Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 50439900
Brand: Kyocera
Model #: 8810153
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | DNGG |
| Insert Size | 332 |
| Material | Cermet |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.7938 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | PV90 |
| Coating | TiN |
| Chip Breaker | S |
| Hole Diameter (mm) | 3.81 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | DNGG110408R-S |
| Rake | Negative |
| Rake Angle | 15 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Manufacturers Catalog Number | DNGG332RS PV90 |
| Primary Workpiece Material | P |
| Included Angle | 55 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Insert Holding Method | Pin & Clamp |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Diamond |
