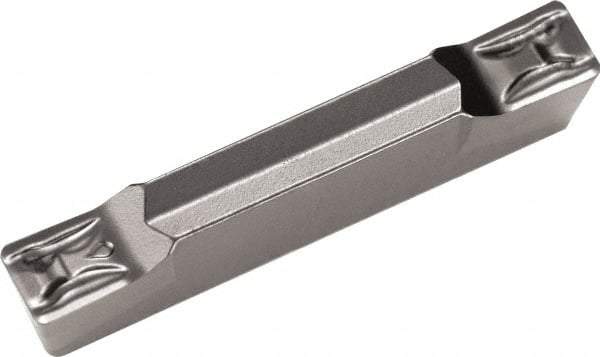

Kyocera - 6020GDM GM Grade PR1535, 6mm Cutting Width Carbide Grooving Insert - Neutral, 0.8mm Corner Radius, Megacoat Nano Finish
Item #: 50434844
Brand: Kyocera
Model #: 8844588
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GDM |
| Insert Size | 6020 |
| Material | Carbide |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Manufacturer's Grade | PR1535 |
| Coating | Megacoat Nano |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.30 |
| Cutting Height (Decimal Inch) | 0.1693 |
| Chipbreaker | GM |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.031496 |
| Coating Process | PVD |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Series | GD |
| Manufacturers Catalog Number | GDM6020N-080GM |
| Insert Thickness (Decimal Inch) | 0.2047 |
| Insert Thickness (mm) | 5.2000 |
