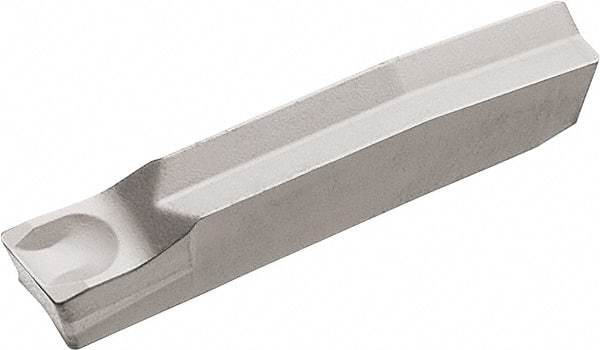

Kyocera - 4GM TK Grade PR930, 4mm Cutting Width Carbide Grooving Insert - Right Hand, 0.3mm Corner Radius, TiCN Finish
Item #: 50433333
Brand: Kyocera
Model #: 8811347
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GM |
| Insert Size | 4 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Material Grade | Super Micrograin |
| Manufacturer's Grade | PR930 |
| Coating | TiCN |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 4.30 |
| Cutting Height (Decimal Inch) | 0.1693 |
| Lead Angle | 8 |
| Chipbreaker | TK |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off |
| Corner Radius (mm) | 0.30 |
| Corner Radius (Decimal Inch) | 0.011811 |
| Coating Process | PVD |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Series | GM |
| Rake Angle | 9 |
| Rake | Negative |
| Manufacturers Catalog Number | GMR4-TK-8D |
| Insert Thickness (Decimal Inch) | 0.1299 |
| Insert Thickness (mm) | 3.3000 |
