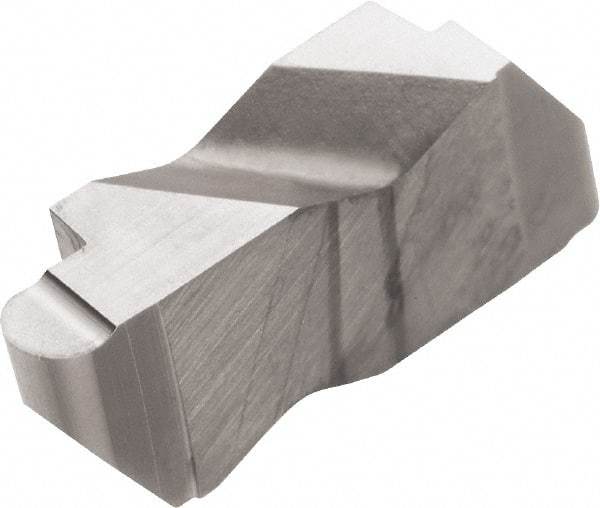

Kyocera - 3062KCRP Grade PR930, 1/8" Cutting Width Carbide Grooving Insert - 0.15" Max Depth of Cut, Left Hand, 1/16" Corner Radius, TiCN Finish
Item #: 50432350
Brand: Kyocera
Model #: 8850065
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | KCRP |
| Insert Size | 3062 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.1250 |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Material Grade | Super Micrograin |
| Manufacturer's Grade | PR930 |
| Coating | TiCN |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Cutting Height (Decimal Inch) | 0.3440 |
| Relief Angle | 3 |
| Multi-Use Tool | No |
| Corner Radius (Decimal Inch) | 0.0620 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.8900 |
| Series | KCRP |
| Rake Angle | 5 |
| Manufacturers Catalog Number | KCRP3062L |
| Included Angle | 55 |
| Insert Thickness (Decimal Inch) | 0.1950 |
