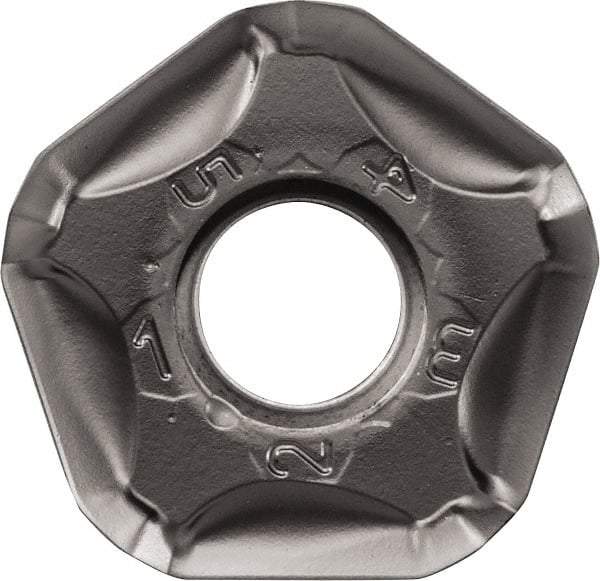

Kyocera - PNMU1205 GM Grade PR1510 Carbide Milling Insert - Megacoat Nano Finish, 5.56mm Thick
Item #: 50430198
Brand: Kyocera
Model #: 8841732
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | PNMU |
| Insert Size | 1205 |
| Material | Carbide |
| Manufacturer's Grade | PR1510 |
| Coating | Megacoat Nano |
| Width (mm) | 17.88 |
| Width (Decimal Inch) | 0.7039 |
| Thickness (mm) | 5.56 |
| Thickness (Decimal Inch) | 0.2189 |
| Hole Diameter (mm) | 6.20 |
| Hole Diameter (Decimal Inch) | 0.2441 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Shape | Pentagon |
| Insert Hand | Left Hand |
| Chipbreaker | GM |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | PNMU1205ANEL-GM |
