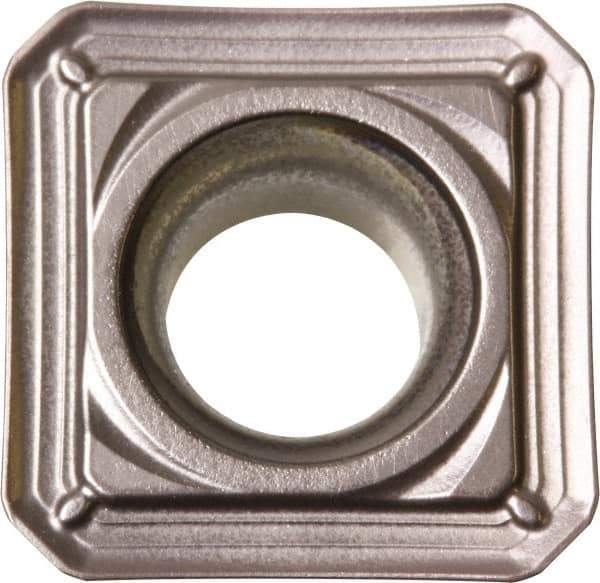

Kyocera - SEKT43 S Grade PR1225 Carbide Milling Insert - Megacoat Finish, 0.187" Thick, 1/2" Inscribed Circle, 0.067" Corner Radius
Item #: 50429711
Brand: Kyocera
Model #: 8833899
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SEKT |
| Insert Size | 43 |
| Material | Carbide |
| Material Grade | Micrograin |
| Manufacturer's Grade | PR1225 |
| Coating | Megacoat |
| Width (Inch) | 1/2 |
| Width (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0670 |
| Hole Diameter (Decimal Inch) | 0.2170 |
| Relief Angle | 25.000 |
| Rake Angle | 15 |
| Rake | Negative |
| Coating Process | PVD |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | S |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | SEKT43AFEN-S |
