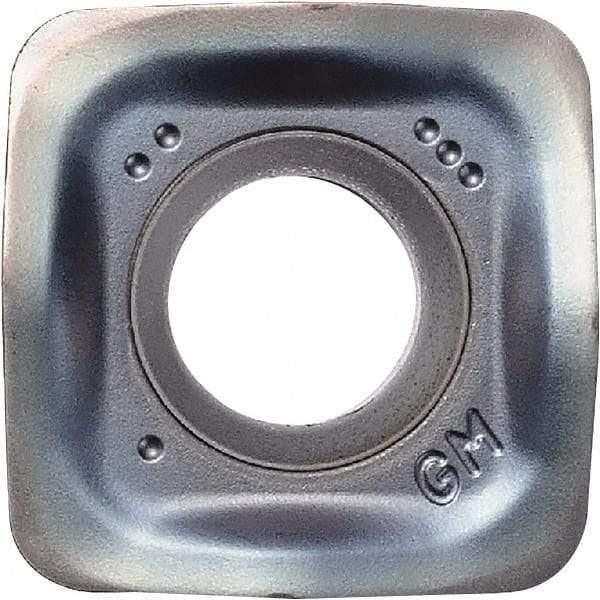

Kyocera - SOMT100420 GM Grade PR1510 Carbide Milling Insert - Megacoat Nano Finish, 4.58mm Thick, 10.3mm Inscribed Circle
Item #: 50429661
Brand: Kyocera
Model #: 8839515
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SOMT |
| Insert Size | 100420 |
| Material | Carbide |
| Manufacturer's Grade | PR1510 |
| Coating | Megacoat Nano |
| Width (mm) | 10.30 |
| Width (Decimal Inch) | 0.4055 |
| Inscribed Circle (mm) | 10.30 |
| Inscribed Circle (Decimal Inch) | 0.4055 |
| Thickness (mm) | 4.58 |
| Thickness (Decimal Inch) | 0.1803 |
| Hole Diameter (mm) | 4.60 |
| Hole Diameter (Decimal Inch) | 0.1811 |
| Relief Angle | 16.000 |
| Coating Process | PVD |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | GM |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | SOMT100420ER-GM |
